Unidoor-X 57 - 60 in. x 30 3/8 - 40 3/8 in. Hinged Shower Enclosure, 24 in. Inline Buttress Panel is rated 3.5 out of 5 by 2.

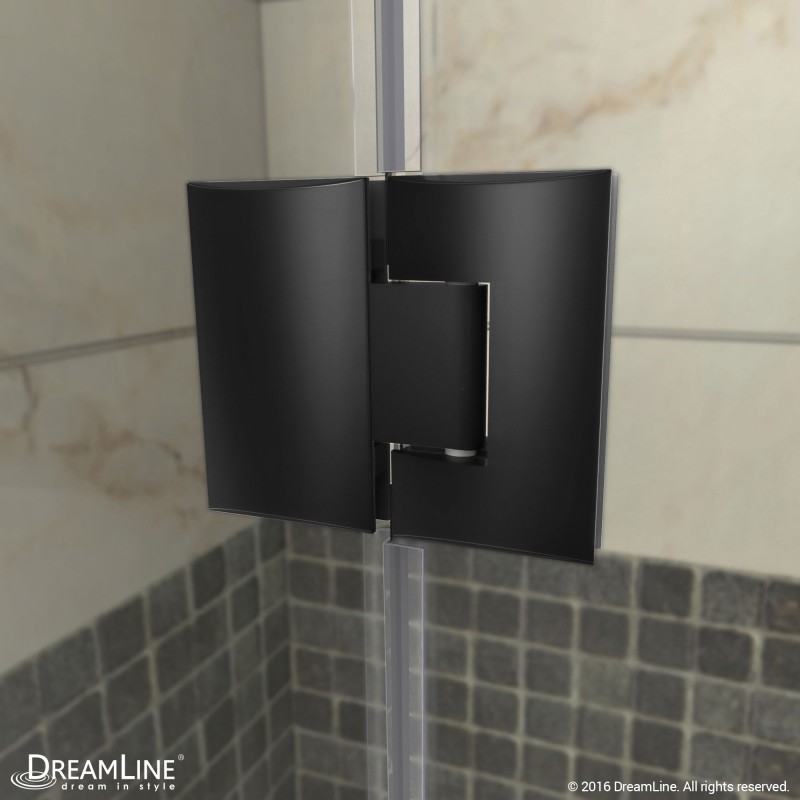

Rated 3 out of 5 by from Door is attractive, the hinge has issues The shower door looks nice but the door sags on the hinge due to the gap inside the hinge where the shower door rests on. There's too much play and the silicone pads that's supposed to sandwich the door and the hinge to keep the door in places is too weak. The weight of the door overcomes the friction holding power of the silicone pads, thereby allowing the door to sag. It will sag enough that one day the door will hit whatever is on the other side (fixed glass, wall, etc) and could potentially shatter. I saw a youtube video that recommends using a plastic setting block to shim inside that gap. This is a common problem with ALL doors with these hinges, so the manufacture should either tighten up the tolerance or supply the setting blocks for the end user to shim. I don't think I should have to go online and buy 100 blocks just to use half 1/10 of one block to shim my door.
Date published: 2019-09-30
Rated 4 out of 5 by from Like the look Installed about a month ago. Was not hard but you really have to tighten the screws real tight on door hinges.
Date published: 2019-06-09
  • y_2023, m_9, d_21, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_2
  • loc_en_US, sid_E127243430, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_bathauthority
  • bvseo_sdk, p_sdk, 3.1.0
  • CLOUD, getContent, 44.37ms
  • REVIEWS, PRODUCT

does the 34" dimension account for the 1/2" adjustment for out of plumb? If I am out of plumb 1/2" on return panel wall, does that mean the overall dimension will then become 34 1/2"

Asked by: Jpat
This will really depend on which direction your wall is leaning out-of-plumb. We would need more information to be able to completely answer your question, but to clarify the measurement for the stationary glass, it is 34" wide and you will get up to 1/2" of adjustment. We invite you to contact our DreamLine PreSales Consultants at 866-282-8413 to have a more detailed discussion on your dimensions and/or site conditions. We can also be reached by sending an email to [email protected]. Our hours of operation are 9am-6pm EST, Monday through Friday. Thank you for your interest in DreamLine.
Answered by: DreamLine
Date published: 2023-09-05

a unidoor X48, fits it on a DLT-103648?

Asked by: ben65
To pair a Unidoor-X enclosure with a double threshold shower base, you will actually need to make sure that the glass dimensions are smaller than the shower base dimensions so that the glass will fit up onto the curbs of the shower base. For the 36x48" shower base (DLT-1036481 or DLT-1036482), will want to get either the 46" or 46-1/2" x 34-3/8" Unidoor-X model size (either model # E1261434 or E12614534). If you have any other questions, we invite you to contact our DreamLine PreSales Consultants at 866-282-8413. We can also be reached by sending an email to [email protected]. Our hours of operation are 9am-6pm EST, Monday through Friday. Thank you for your interest in DreamLine.
Answered by: DreamLine
Date published: 2023-06-26

What would be the exact dimensions of the bottom u channels for the E12834-04

Asked by: JST1957
The U-channels that come with this Unidoor-X shower enclosure all need to be cut to the proper length for installation, so their final length really depends on how much you need to trim off each channel. Right out of the box, you will receive (qty:2) 76" long U-channels and (qty:2) 44" long U-channels. The U-channels will require a minimum of 5/8" of wall space and threshold space and they will stick out from the walls (and stand up from the threshold) approximately 1". If you have any other questions, we invite you to contact our DreamLine PreSales Consultants at 866-282-8413. We can also be reached by sending an email to [email protected]. Our hours of operation are 9am-6pm EST, Monday through Friday. Thank you for your interest in DreamLine.
Answered by: DreamLine
Date published: 2023-05-09

Does this work with a 54x36in base?

Asked by: blair27
If you are planning to get the DreamLine SlimLine 36x54" double threshold shower base, the matching Unidoor-X enclosure will be approximately 2" smaller on all dimensions. The best way to select the proper size is to install the base and finish the walls first so you can measure the space you will have once the opening is finished and ready to have a shower enclosure installed. For the 36x54" base, your Unidoor-X shower enclosure will be approximately 1-1/2" to 2" smaller on all dimensions (so 34-3/8" x 52" or 34-3/8" x 52-1/2"). If you have any other questions, we invite you to contact our DreamLine PreSales Consultants at 866-282-8413. We can also be reached by sending an email to [email protected]. Our hours of operation are 9am-6pm EST, Monday through Friday. Thank you for your interest in DreamLine.
Answered by: DreamLine
Date published: 2023-04-18

I would like to buy a DreamLine Unidoor-X 29 3/8 in. W x 36 in. D x 72 in. H Frameless Hinged Shower Enclosure in Satin Black. However, I see that only DreamLine Unidoor-X 29 3/8 in. W x 34 in. D x 72 in. H are available. Does the 36"" option exist?

Asked by: meri
The closest thing to what you are looking for that we offer in a stock size is model # E13030 which will be 36-3/8" x 30". If you need to customize any of the sizing for the Unidoor-X, our custom glass team can assist you further with this. To get a quote for custom glass, you will need to go to your preferred local DreamLine authorized retailer and have an associate from the store send all of your dimensions and specifications over to the custom glass team to request a quote. Quote requests can only come from an authorized dealer. Once the custom glass team has the quote request, they will review it and return a quote back to the dealer within 1-2 business days for you to consider. If you have any other questions, we invite you to contact our DreamLine PreSales Consultants at 866-282-8413. We can also be reached by sending an email to [email protected]. Our hours of operation are 9am-6pm EST, Monday through Friday. Thank you for your interest in DreamLine.
Answered by: DreamLine
Date published: 2022-12-07

Will this work with a 30 x 60 left drain pan?

Asked by: JKscotch
This model will not fit a 30x60 shower base. It seems like there may be some confusion on pairing our glass with a shower base, so we invite you to contact our team of PreSales consultants at 866-282-8413. They will be happy to assist you with getting compatibly sized products (base and glass). We can also be reached by sending an email to [email protected]. Our hours of operation are 9am-6pm EST, Monday through Friday. Thank you for your interest in DreamLine.
Answered by: DreamLine
Date published: 2022-06-29

Can this model be installed without a base or threshold? I want to install directly on the tile floor.

Asked by: Any mouse
Yes - this model can be installed to a "curbless" or "zero curb" style shower. You will need to secure all necessary hardware to your tile floor with the provided screws and you will need to make sure that your tile floor is sloped appropriately for proper drainage. If you have any other questions, we invite you to contact our DreamLine PreSales Consultants at 866-282-8413. We can also be reached by sending an email to [email protected]. Our hours of operation are 9am-6pm EST, Monday through Friday. Thank you for your interest in DreamLine.
Answered by: DreamLine
Date published: 2022-06-01

What are the measurements to the center of the drain if I bought a center drain pan?

Asked by: B_rock
This Unidoor-X shower enclosure will require a double threshold shower base (for corner installation). DreamLine does not make a double threshold shower base with a center drain location, so unfortunately, we cannot provide you with any dimensions for this. If you have any other questions, we invite you to contact our DreamLine PreSales Consultants at 866-282-8413. We can also be reached by sending an email to [email protected]. Our hours of operation are 9am-6pm EST, Monday through Friday. Thank you for your interest in DreamLine.
Answered by: DreamLine
Date published: 2022-05-02
